The state-of-the art in marine equipment
The growing demands of the marine marketplace demand a big, robust power producer. As the world’s yachts grow more sophisticated, their power generation system must keep pace.

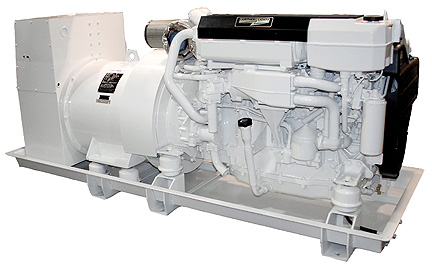

Northern Lights generator sets are based on world-class components - including industrial strength base engines and generator ends. Our exclusive marinization process ensures reliable, clean power no matter what your vessel requires.
Low profile for maximum engine room flexibility
Northern Lights’ revolutionary base frame design creates the most compact, best looking power generation set on the market. Our optional sound enclosures and compound mounts save even more space and virtually eliminate vibration noise. Northern Lights provides maximize power efficiency while using minimal engine room space.
Electronic system profiler
The Electronic System Profiler or “ESP” is a window to your set’s real-time operating condition. The ECU that controls the electronic engine functions provides a SAE J1939 data stream of engine information that can be shown on an optional system monitor panel.
Superior PMG generator ends
Northern Lights generator ends achieve ±0.5% voltage regulation. All have low temperature rise ratings to meet or exceed marine requirements. All M1306’s have Permanent Magnet Generators for 300% short circuit capability required for classed vessels.
Complete unit testing
Northern Lights generator sets are thoroughly factory tested and go through a complete quality control program to ensure your satisfaction with the best built marine generator on the market today.

| M1306A12 |
| Specifications |
| 60Hz/1800rpm |
355 kW |
| 50Hz/1500rpm |
300 kW |
| Cylinders |
6 inline |
| Bore: |
5.1 in (130 mm) |
| Stroke: |
6.3 in (160 mm) |
| Displacement: |
775 cid (12.7 ltr) |
| Fuel System: |
High Pressure / Electronic |
| Aspiration: |
Turbocharged&Aftercooled |
| Length: |
111.0 in (2819 mm) |
| Width: |
42.0 in (1067 mm) |
| Height: |
47.1 in (1196 mm) |
| Weight: |
6350 lbs (2880 kg) |
| Enclosure Length: |
111.0 in (2819 mm) |
| Enclosure Width: |
42.0 in (1067 mm) |
| Enclosure Height: |
49.5 in (1257 mm) |
| Enclosure Weight: |
600 lbs (272 kg) |
NOTE:
Information, specifications, materials and dimensions subject to change without notice. |
| M1306A22 |
| Specifications |
| 60Hz/1800rpm |
400 kW |
| 50Hz/1500rpm |
350 kW |
| Cylinders |
6 inline |
| Bore: |
5.1 in (130 mm) |
| Stroke: |
6.3 in (160 mm) |
| Displacement: |
775 cid (12.7 ltr) |
| Fuel System: |
High Pressure / Electronic |
| Aspiration: |
Turbocharged&Aftercooled |
| Length: |
111.0 in (2819 mm) |
| Width: |
42.0 in (1067 mm) |
| Height: |
47.1 in (1196 mm) |
| Weight: |
6350 lbs (2880 kg) |
| Enclosure Length: |
111.0 in (2819 mm) |
| Enclosure Width: |
42.0 in (1067 mm) |
| Enclosure Height: |
49.5 in (1257 mm) |
| Enclosure Weight: |
600 lbs (272 kg) |
NOTE:
Information, specifications, materials and dimensions subject to change without notice. |
| M1306A23 |
| Specifications |
| 60Hz/1800rpm |
n/a |
| 50Hz/1500rpm |
400 kW |
| Cylinders |
6 inline |
| Bore: |
5.1 in (130 mm) |
| Stroke: |
6.3 in (160 mm) |
| Displacement: |
775 cid (12.7 ltr) |
| Fuel System: |
High Pressure Electronic |
| Aspiration: |
Turbocharged&Aftercooled |
| Length: |
111.0 in (2819 mm) |
| Width: |
42.0 in (1067 mm) |
| Height: |
47.1 in (1196 mm) |
| Weight (50 Hz): |
6720 lbs (3048 kg) |
| Enclosure Length: |
111.0 in (2819 mm) |
| Enclosure Width: |
42.0 in (1067 mm) |
| Enclosure Height: |
49.5 in (1257 mm) |
| Enclosure Weight: |
600 lbs (272 kg) |
NOTE:
Information, specifications, materials and dimensions subject to change without notice. |
|
